Description
PORSCHE PCM 3.0 Multimedia Video Interface Module

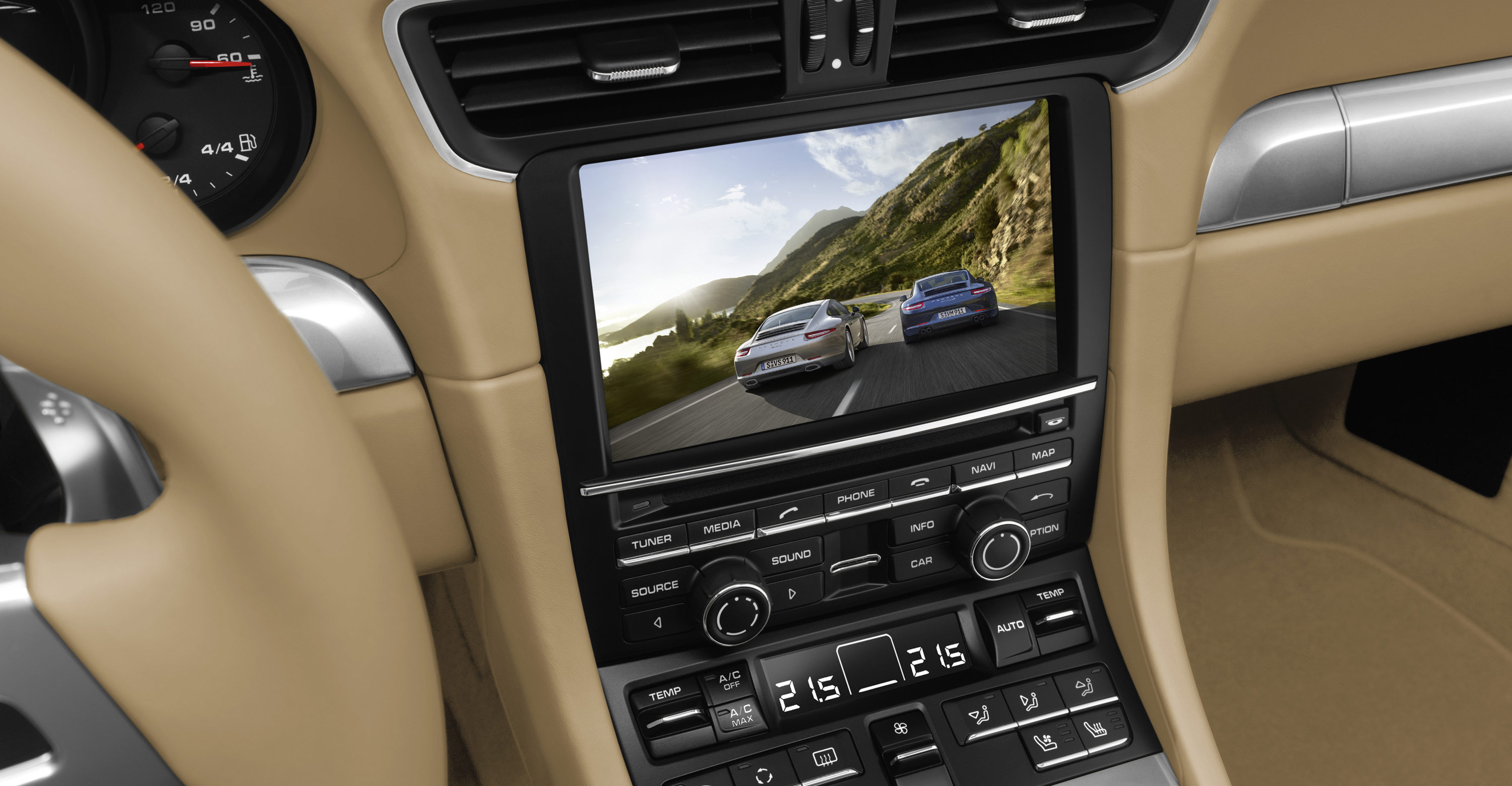

The PCM3.0INT systems package is a high definition video integration module for your PORSCHE vehicle with built-in disaply . The video interface connects through a simple plug and play OEM Integrated LVDS connection to the factory screen. The PCM3.0INT Interface Module has a dedicated rear view camera input, aftermarket RGB Navigation input, and 3 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is an OEM integration package that maintains your factory set up while upgrading your vehicle with full Multimedia Audio/Video integration.
PORSCHE PCM 3.0 Multimedia Video Interface Module COMPATIBILITY
| PORSCHE Model | Model Year | Multimedia System |
| Cayenne | 2009∼ | PCM 3.0 |
| Carrera | 2009∼ | PCM 3.0 |
*Requires Ribbon Cable & Sub-board Installation
PORSCHE PCM 3.0 Multimedia Video Interface Module FEATURES
Input
-
- Plug & Play installation by LVDS cable
- DVD & NAVI control by through optional touch screen panel
- 1 x dedicated Rear-View Camera input
- 3 x A/V Inputs
- 1 x LCD input
Output
-
- 2 x CVBS output (video out for headrest monitor installation)
- 1 x Audio output
- 1 x LCD output
- Factory button function & provided remote control
Power
-
- Input power : 8V DC – 24V DC
- Consumption : 12W, Max
Board dimension
-
- 130mm x 105mm x 22mm
PORSCHE PCM 3.0 Multimedia Video Interface Module PACKAGE CONTENT
-
- PCM 3.0 Car Video Interface Main Board
- Ribbon Cable
- Sub-board
- Remote control unit with IR cable or OSD Keypad
- Cable set
- Power Cable with protective filter
- LCD Out cable
- AV bundle cable
- NAVI (RGB) cable
- Mode switch cable
- LCD cable
- Installation Instructions
- Owners Manual/Warranty Card
- PCM 3.0 Car Video Interface Main Board
