RANGE ROVER HSE OEM Integrated Backup Camera System

$494.00 – $524.00

This OEM Integrated RANGE ROVER Rear-View Backup Camera kit fits all 2003-2014 RANGE ROVER HSE models. The comprehensive Multimedia Video Interface integrates through simple plug-in connection to enable the viewing of external video sources such as Backup Camera (provided in kit), DVD player, TV tuner, Video Game Console, Smartphone, and optional Navigation on your factory built-in car monitor.

Description

RANGE ROVER HSE OEM Integrated Backup Camera

Name: RANGE ROVER HSE OEM Integrated Backup Camera System
SKU: rrint-unidf-hse
Availability: InStock

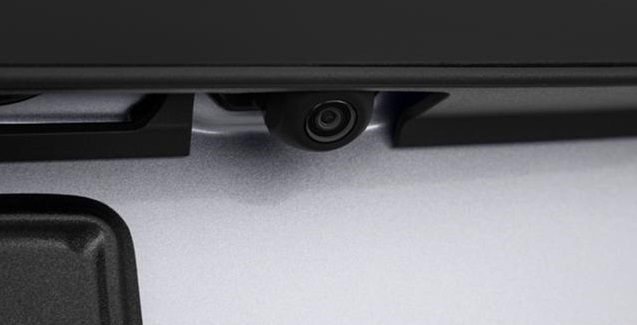

The RRINT-UNIDF systems package is a high definition rear view camera and video integration module for your RANGE ROVER. The OEM Integrated backup camera mounts above the license plate area once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The RRINT Interface Module has a dedicated rear view camera input, aftermarket RGB Navigation input, and 3 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with backup camera and full Multimedia Audio/Video integration.

RANGE ROVER HSE Systems COMPATIBILITY

RANGE ROVER Model	Model Year	Multimedia System
HSE	2003-2004	w/ Nav (BMW+)
HSE	2005-2009	w/ Nav (GVIF)
HSE	2010-2014	Dual View LCD

System Requirment Note*

- 2005-2009 HSE must have external navigation box
- 2010-2014 HSE must have built in dual view LCD display

RANGE ROVER HSE Interface Module FEATURES

Input

- Installation by Plug & Play LVDS Cable
- DVD & NAVI control by through optional touch screen panel
- 1 x dedicated Rear-View Camera input
- 3 x A/V Inputs
- 1 x LCD input

Output

- 2 x CVBS output (video out for headrest monitor installation)
- 4 x Audio select output
- 1 x Cayenne output
- Remote control & Toggle switch provided

Power

- Input power : 8V DC – 24V DC
- Consumption : 5W, Max

Board dimension

- 130mm x 105mm x 22mm

RANGE ROVER HSE Backup Camera FEATURES

Features

- OEM Style Backup Camera fitment
- Vivid Color High Resolution
- 170° Wide Angle View

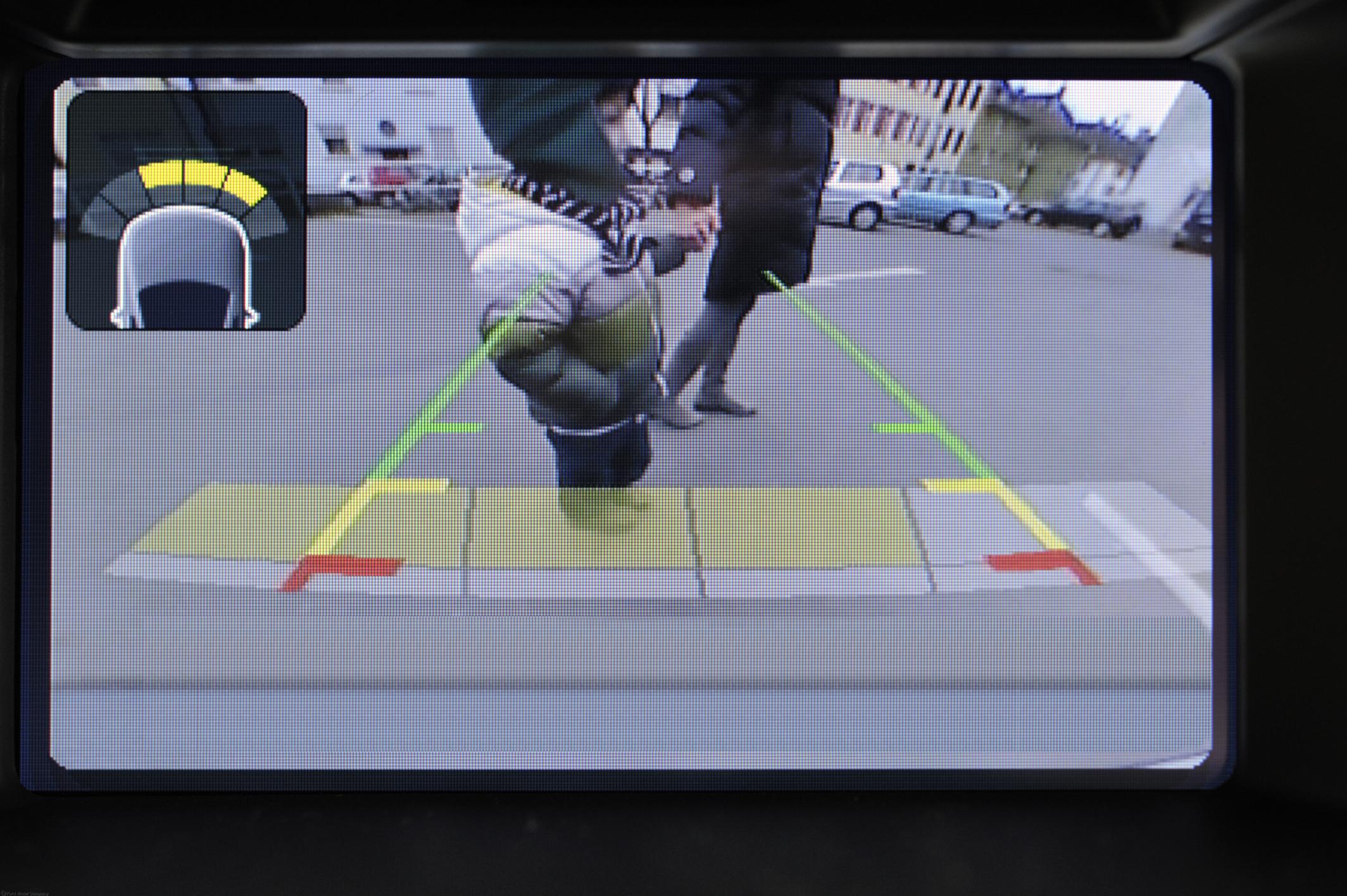

- Parking Guide Lines (can be turned on/off)
- Waterproof Ip68
- Shockproof
- Simple Installation

Specifications

155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)
