Description
Nissan Leaf OEM Integrated Backup Camera
The FC-NISS systems package is a comprehensive high definition Rear View Camera and Factory Connect Harness for your Nissan. The OEM style Rear View Camera is mounted above the license plate area and connects to the Factory specific Nissan Harness behind the existing screen. Once the vehicle is placed into reverse the high resolution image of the backup camera will automatically appear on the factory display for safe navigation. This kit is a simplte Plug & Play installation. This OEM integration package maintains your factory set up while upgrading your vehicle with a Rear View Camera System.
Nissan Leaf Systems COMPATIBILITY
Nissan Model | Model Year | Multimedia System |
Leaf | 2013-2015 | w/ OEM 4.3″ Screen
All Trim Levels |
Nissan Leaf Factory Connect Harness FEATURES
Features
-
- Factory Nissan Connect Harness
- Plug & Play configuration
- Quick Connect to Video Cable and Rear Camera
- Automatic Reverse trigger activation
- Rear Camera Input (RCA)
- Parking Guide Line Option (ON/OFF)
Nissan Leaf Backup Camera FEATURES
Features
-
- OEM Style Backup Camera fitment
- Flush Mount Camera
- Vivid Color High Resolution
- 170° Wide Angle View
- Parking Guide Lines (can be turned on/off)
- Waterproof Ip68
- Shockproof
- Simple Installation
Specifications
155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)
Nissan Leaf OEM Integrated Backup Camera System PACKAGE CONTENT
-

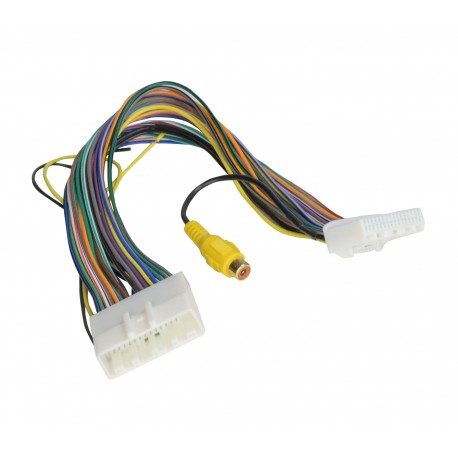

- Nissan Factory Connect Harness
- Nissan OEM Style Universal Mount Backup Camera
- 30FT Video Cable
- Camera Power/Ground Harness
- Male to Male RCA Adapter
- Camera sealer pad
- Installation Instructions
