Description

Mercedes-Benz S-Class OEM Integrated Backup Camera System

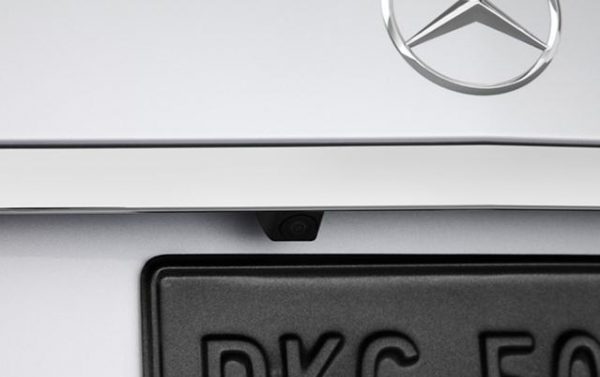

The FC-MB08/MB10/W222 systems package is a high definition rear view camera and video integration module for your MERCEDES-BENZ vehicle with or without Navigation. The OEM Integrated backup camera is mounted above the license plate lip and sits at a fixed angle pointing down and out at 45 degrees. Once installed, the system will automatically trigger when in reverse displaying a high resolution image onto your existing OEM screen. The FC-MB08/MB10/W222 Interface Module has a dedicated rear view camera input along with 3 additional AV inputs should you decide to add a front camera or any external video source that uses RCA connections. This is a plug and play system meaning once installed, it’s ready for use without any dealer activation or coding required.

Mercedes-Benz S-Class Systems Compatibility

Mercedes-Benz S-Class Interface Module Features

Input

• • Plug & Play installation by LVDS cable
  • Connected devices controlled by iDrive buttons
  • DVD & NAVI control by through optional touch screen panel
  • 1 x dedicated Rear-View Camera input
  • 3 x A/V Inputs
  • 1 x LCD input

Output

• • 2 x CVBS output (video out for headrest monitor installation)
  • 1 x Audio output
  • 1 x LCD output
  • Factory button function & provided remote control

Power

• • Input power : 8V DC – 24V DC
  • Consumption : 5W, Max

Board dimension

• • 130mm x 105mm x 22mm

Mercedes-Benz S-Class Flush Mount Camera Features

Features

• • Mercedes S-Class Rear-view Camera fitment
  • Flush Mount Camera
  • Vivid Color High Resolution
  • 170° Wide Angle View
  • Parking Guide Lines (can be turned on/off)
  • Waterproof Ip68
  • Shockproof
  • Simple Installation

Specifications

155° Off Axis View Cone

IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)

UV Protected and Waterproof Cabling

0.1 LUX Rating for Optimal Low-light Performance

32° to 160° Temp Performance Rating

Quick Connect/Disconnect

Optional Parking Lines ON/OFF

Optional Mirror Image ON/OFF

Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)

Mercedes-Benz S-Class Backup Camera System Package Content

• • Mercedes-Benz Video Interface Module
  • Factory Integrated LCD Cable
  • Factory Integrated LVDS Cable
  • Sub-Board
  • Power Harness
  • AV Harness
  • IR Cable
  • Mode Cable
  • Remote Control
  • Flush Mount Camera
  • Camera Power Harness
  • Camera RCA Extension Cable
  • Camera Screw Set
  • Installation Guide


Please note package content may differ depending on vehicle year and camera option.
