JEEP LIBERTY OEM Integrated Backup Camera

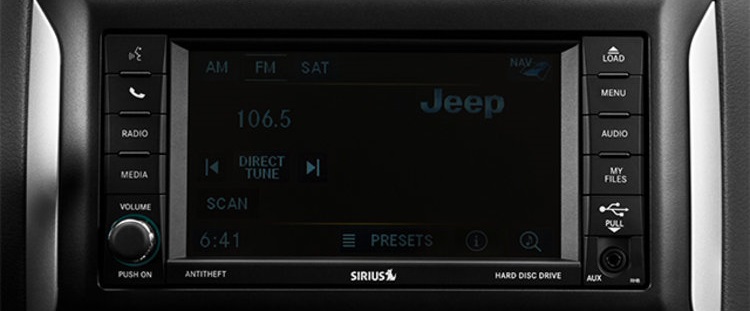

The Jeep Liberty Backup Camera system is a high definition rear view camera and video integration module for your JEEP vehicle with MyGig Radio. The OEM Integrated backup camera mounts above the license plate area. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The Integration Module is a fully programmed plug and play Interface that allows for Video In Motion and has a dedicated rear view camera input along with 2 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.

** THIS SYSTEM DOES NOT REQUIRE DEALER ACTIVATION. IT’S A PLUG AND PLAY THAT WILL TRIGGER ONCE INSTALLED **

JEEP LIBERTY Systems COMPATIBILITY

*Works with all MyGig Radios including: RER / REN / RHB / RBZ / RHR

*Note: NON U.S. Radios not supported: REP / RHP / REZ / REW / RBZ / REJ

JEEP LIBERTY INTERFACE FEATURES

Input

• • Plug & Play installation by LCD Connector
  • Connected devices controlled through factory Steering Wheel buttons
  • 1 x Dedicated Rear-View Camera input
  • 2 x Video Inputs
  • USB Updateable

Output

Highlights

• • Single Plug and Play Connection for Installation
  • No wire cutting or other connections needed
  • Simple removal for Leased Vehicles

JEEP LIBERTY OEM Integrated Style Backup Camera FEATURES

Features

• • Floush Mount Camera
  • Vivid Color High Resolution
  • 170° Wide Angle View
  • Parking Guide Lines (can be turned on/off)
  • Waterproof Ip68
  • Shockproof
  • Simple Installation

Specifications

155° Off Axis View Cone

IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)

UV Protected and Waterproof Cabling

0.1 LUX Rating for Optimal Low-light Performance

32° to 160° Temp Performance Rating

Quick Connect/Disconnect

Optional Parking Lines ON/OFF

Optional Mirror Image ON/OFF

Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)

JEEP LIBERTY Backup Camera System PACKAGE CONTENT

• • Multimedia Interface
  • Plug & Play Multimedia Harness
  • OEM Style JEEP Rear View Camera
  • Power/Ground harness cable
  • 35FT Video cable
  • Installation Instructions
  • Owners Manual/Warranty Card
