JEEP COMPASS OEM Integrated Backup Camera
The Jeep Compass Backup Camera system is a high definition rear view camera and video integration module for your JEEP vehicle with MyGig Radio. The OEM Integrated backup camera mounts above the license plate area. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The integration module is a fully programmed plug and play Interface that allows for Video. This system is a simple OEM integration package that maintains your factory set up and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.
** THIS KIT DOES NOT REQUIRE DEALER ACTIVATION. IT’S A PLUG AND PLAY THAT WILL TRIGGER ONCE INSTALLED **
JEEP COMPASS Systems COMPATIBILITY
| JEEP Model | Model Year | Interface System |
| Compass | 2009-2017 | with MyGig Radio |

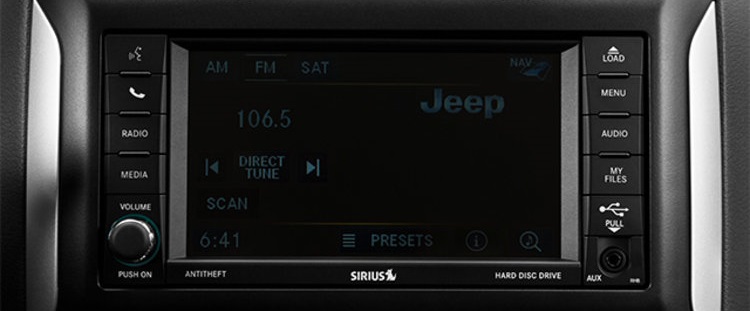

*Works with all MyGig Radios including: RER / REN / RHB / RBZ / RHR
*Note: NON U.S. Radios not supported: REP / RHP / REZ / REW / RBZ / REJ
JEEP COMPASS INTEGRATION FEATURES
Input
-
- Plug & Play installation by LCD Connector
- Connected devices controlled through factory Steering Wheel buttons
- 1 x Dedicated Rear-View Camera input
- 2 x Video Inputs
- USB Updateable
Output
Highlights
-
- Single Plug and Play Connection for Installation
- No wire cutting or other connections needed
- Simple removal for Leased Vehicles
JEEP COMPASS OEM Integrated Style Backup Camera FEATURES
Features
-
- Vivid Color High Resolution
- 170° Wide Angle View
- Parking Guide Lines (can be turned on/off)
- Waterproof Ip68
- Shockproof
- Simple Installation
Specifications
155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)
JEEP COMPASS Backup Camera System PACKAGE CONTENT
-
- Multimedia Interface
- Plug & Play Multimedia Harness
- OEM Style JEEP Rear View Camera
- Power/Ground harness cable
- 35FT Video cable
- Installation Instructions
- Owners Manual/Warranty Card
