JAGUAR XK OEM Integrated Backup Camera

The JAGINT-UNIDF systems package is a high definition rear view camera and video integration module for your JAGUAR vehicle with OEM Integrated external navigation box. The OEM Integrated backup camera mounts above the license plate area. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The JAGINT Interface Module has a dedicated rear view camera input, aftermarket RGB Navigation input, and 3 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with backup camera and full Multimedia Audio/Video integration.

JAGUAR XK Systems COMPATIBILITY

JAGUAR XK Interface Module FEATURES

Input

• • Installation by Plug & Play LVDS Cable
  • DVD & NAVI control by through optional touch screen panel
  • 1 x dedicated Rear-View Camera input
  • 3 x A/V Inputs
  • 1 x LCD input

Output

• • 2 x CVBS output (video out for headrest monitor installation)
  • 4 x Audio select output
  • 1 x Cayenne output
  • Remote control & Toggle switch provided

Power

• • Input power : 8V DC – 24V DC
  • Consumption : 5W, Max

Board dimension

• • 130mm x 105mm x 22mm

JAGUAR XK Backup Camera FEATURES

Features

• • Backup Camera fitment
  • Vivid Color High Resolution
  • 170° Wide Angle View
  • Parking Guide Lines (can be turned on/off)
  • Waterproof Ip68
  • Shockproof
  • Simple Installation

Specifications

155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)

JAGUAR XK OEM Integrated Backup Camera System PACKAGE CONTENT

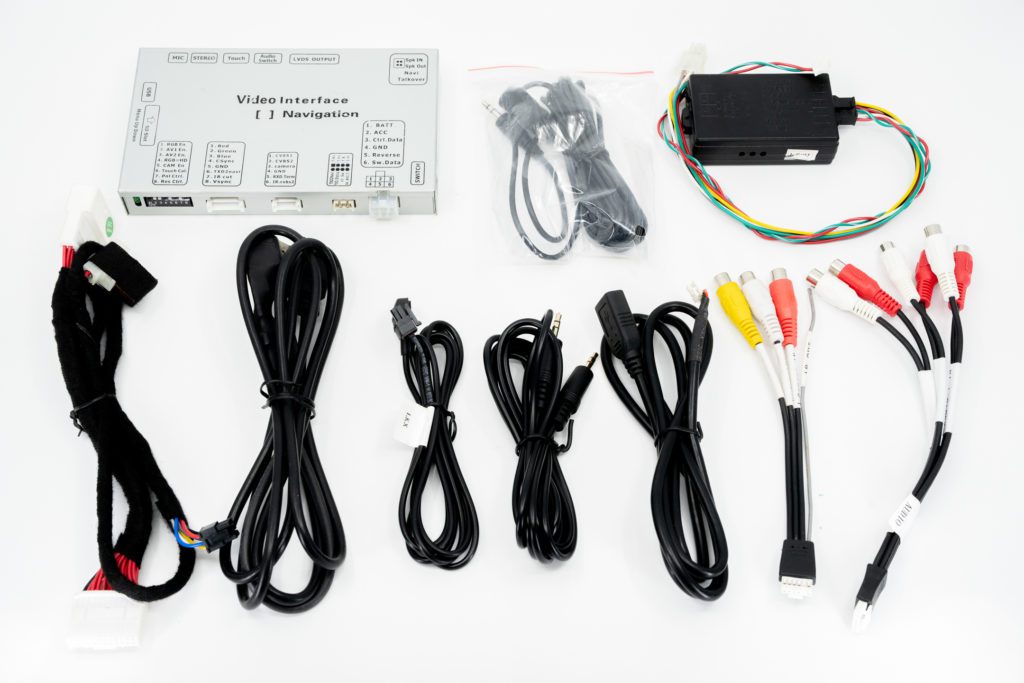

• • JAGUAR XK GVIF Car Video Interface Main Board
  • Remote control unit with IR cable or OSD Keypad
  • Cable set
  • Power Cable with protective filter
  • LCD Out cable
  • AV bundle cable
  • NAVI (RGB) cable
  • Mode switch cable
  • LCD cable
  • JAGUAR XK Universal Mount Backup Camera
  • Power/Ground harness cable
  • 30FT Video cable
  • Installation Instructions
  • Owners Manual/Warranty Card
