GMC OUTLOOK OEM Integrated Backup Camera System

$407.00

This OEM Integrated GMC Rear-View Backup Camera kit fits all 2007-2010 GMC OUTLOOK models with GM Navigation Systems. The comprehensive Multimedia Video Interface integrates through a simple plug and play connection to unlock and enable Video In Motion, viewing of external video sources such as Backup Camera (provided in kit), DVD player, TV tuner, Video Game Console, Smartphone, and optional Navigation on your factory built-in car monitor.

The Plug & Play Lockpick unlocks the following factory functions and enables:

– DVD or AUX Input Picture
– Navigation address inputs, manage routes, and points of interest while in motion
– XM, CD, and Radio restrictions
– OnStar on screen dialing
– Rear-View Camera

Category: SKU: lockpick-unidf-go Tags:

Description

GMC OUTLOOK OEM Integrated Backup Camera

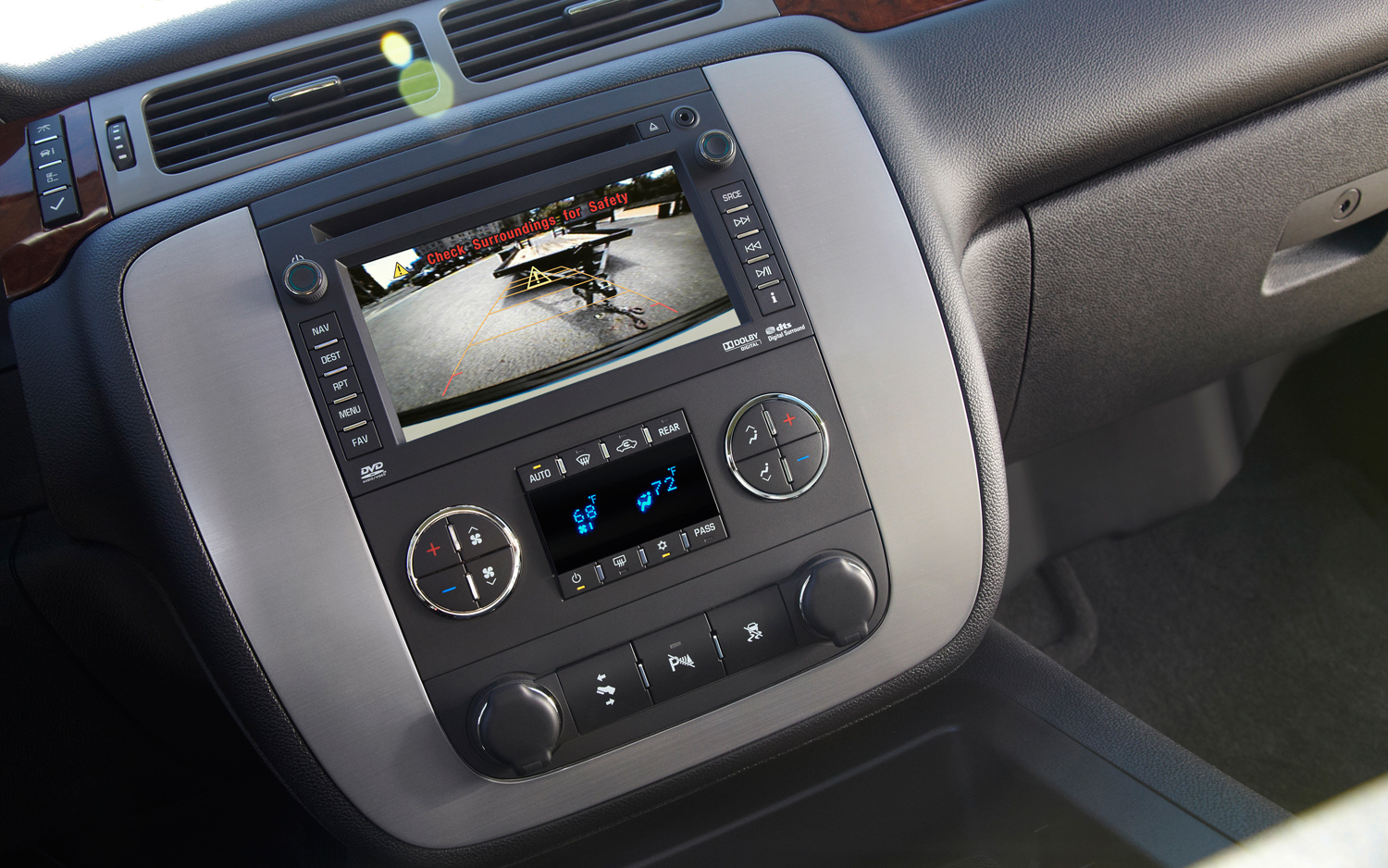

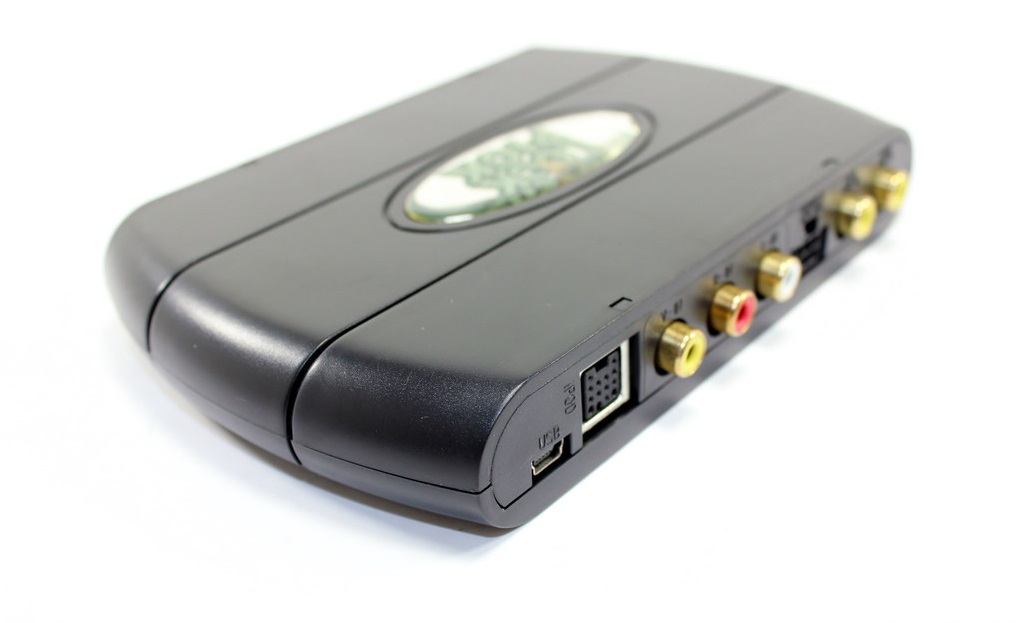

The LOCKPICK-UNIDF systems package is a high definition rear view camera and video integration module for your GMC vehicle with GM Navigation. The OEM Integrated backup camera mountsabove the license plate area. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The Lockpick Module is a fully programmed plug and play Interface that allows for Video In Motion and has a dedicated rear view camera input along with 2 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.

GMC OUTLOOK Systems COMPATIBILITY

GMC Model   Model Year Interface System
Outlook 2007-2010 GM Navigation (Gen6)





GMC OUTLOOK Lockpick FEATURES



Input

    • Plug & Play installation by LCD Connector
    • Connected devices controlled through factory Steering Wheel buttons
    • 1 x Dedicated Rear-View Camera input
    • 2 x Video Inputs
    • USB Updateable



Output

    • Unlocks Screen for Video In Motion in all gears
    • 1 x Rear View Camera Image
    • 2 x Video Source Displays
    • 2 x 12V Output for external sources



Highlights

    • Single Plug and Play Connection for Installation
    • No wire cutting or other connections needed
    • Unlocks factory screen to display sources in motion
    • View any video source in all gears
    • Simple removal for Leased Vehicles









GMC OUTLOOK OEM Integrated Style Backup Camera FEATURES



Features

    • Flush Mount Camera
    • Vivid Color High Resolution
    • 170° Wide Angle View
    • Parking Guide Lines (can be turned on/off)
    • Waterproof Ip68
    • Shockproof
    • Simple Installation



Specifications

155° Off Axis View Cone

IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)

UV Protected and Waterproof Cabling

0.1 LUX Rating for Optimal Low-light Performance

32° to 160° Temp Performance Rating

Quick Connect/Disconnect

Optional Parking Lines ON/OFF

Optional Mirror Image ON/OFF

Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)





GMC OUTLOOK Backup Camera System PACKAGE CONTENT



    • GM Lockpick Module
    • Plug & Play Multimedia Harness
    • OEM Style GMC Rear View Camera
    • Power/Ground harness cable
    • 35FT Video cable
    • Installation Instructions
    • Owners Manual/Warranty Card



Additional information

Weight 3.0000 lbs
