Description

DODGE JOURNEY OEM Integrated Backup Camera

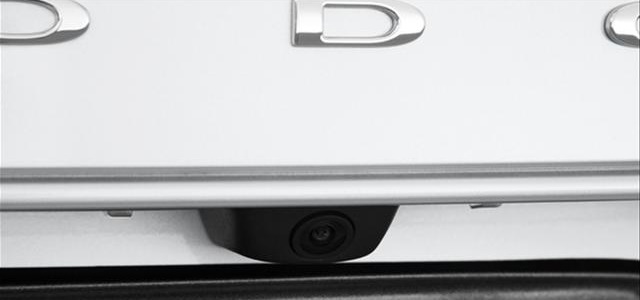

The Dodge Journey Backup Camera system is a high definition rear view camera and video integration module for your DODGE vehicle with MyGig Radio. The OEM Integrated backup camera mountsabove the license plate area. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The Integration Module is a fully programmed plug and play Interface that allows for Video In Motion and has a dedicated rear view camera input along with 2 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.

DODGE JOURNEY Systems COMPATIBILITY

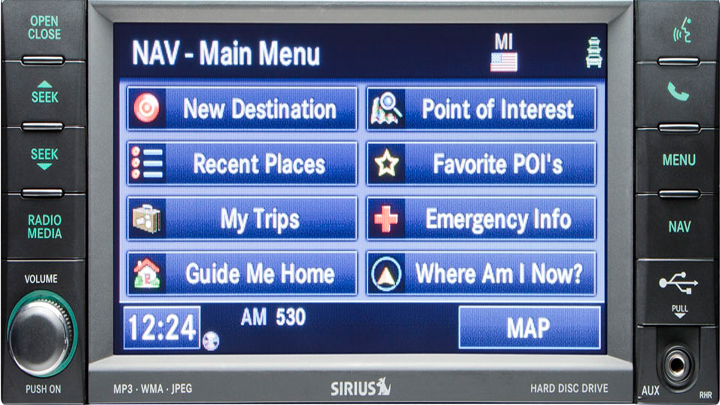

*Works with all MyGig Radios including: RER / REN / RHB / RBZ / RHR

*Note: NON U.S. Radios not supported: REP / RHP / REZ / REW / RBZ / REJ

DODGE JOURNEY INTERFACE FEATURES

Input

• • Plug & Play installation by LCD Connector
  • Connected devices controlled through factory Steering Wheel buttons
  • 1 x Dedicated Rear-View Camera input
  • 2 x Video Inputs
  • USB Updateable

Output

• • Unlocks Screen for Video In Motion in all gears
  • 1 x Rear View Camera Image
  • 2 x Video Source Displays
  • 2 x 12V Output for external sources

Highlights

• • Single Plug and Play Connection for Installation
  • No wire cutting or other connections needed
  • Unlocks factory screen to display sources in motion
  • View any video source in all gears
  • Simple removal for Leased Vehicles

DODGE JOURNEY OEM Integrated Style Backup Camera FEATURES

Features

• • Vivid Color High Resolution
  • 170° Wide Angle View
  • Parking Guide Lines (can be turned on/off)
  • Waterproof Ip68
  • Shockproof
  • Simple Installation

Specifications

155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)

DODGE JOURNEY Backup Camera System PACKAGE CONTENT

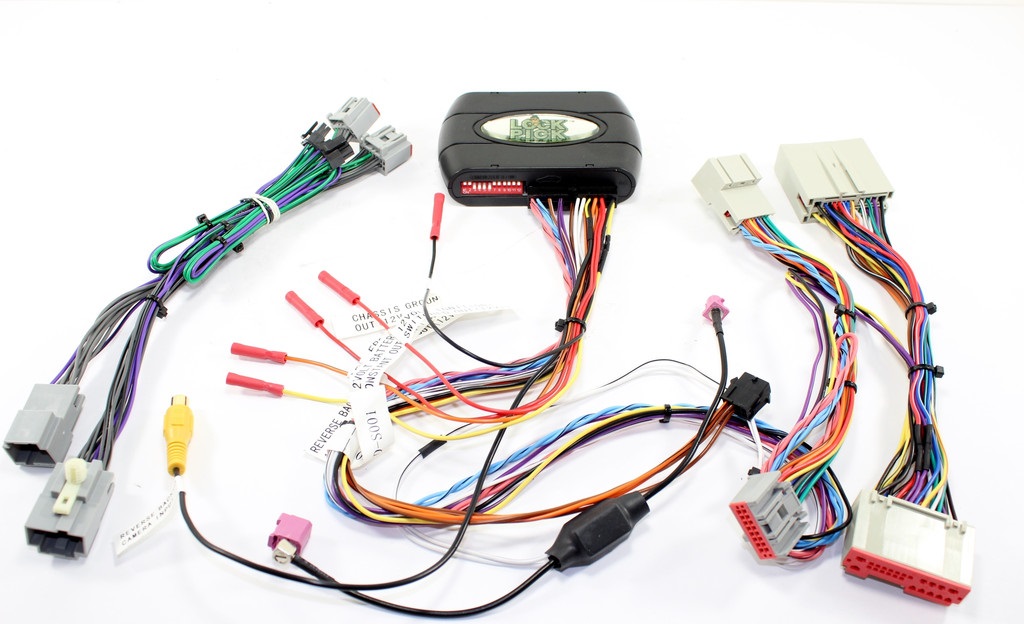

• • Multimedia Interface
  • Plug & Play Multimedia Harness
  • OEM Style DODGE Rear View Camera
  • Power/Ground harness cable
  • 35FT Video cable
  • Installation Instructions
  • Owners Manual/Warranty Card
