chrysler sebring backup camera and carplay main picture
gch backup camera integration harness
HD Backup Camera

CHRYSLER SEBRING OEM Integrated Backup Camera System

$350.00

This OEM Integrated CHRYSLER Rear-View Backup Camera kit fits all 2008-2010 CHRYSLER SEBRING models and All Trim Levels with MyGig OEM Radio. The comprehensive Multimedia Video Interface integrates through a simple plug and play connection to unlock and enable Video In Motion, viewing of external video sources such as Backup Camera (provided in kit)



** THIS KIT DOES NOT REQUIRE DEALER ACTIVATION. IT’S A PLUG AND PLAY THAT WILL TRIGGER ONCE INSTALLED **

19 in stock (can be backordered)

Rear Camera Option *

Select your rear camera

Front Camera Add-On

Add a front camera to your order

Category: SKU: FC-BCI-CH21-Sebring Tags:

Description

CHRYSLER SEBRING OEM Integrated Backup Camera

The Chrysler Sebring Backup Camera system is a high definition rear view camera and video integration module for your CHRYSLER vehicle with MyGig Radio. The OEM Integrated backup camera above the license plate area. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. This system is a simple OEM integration package that maintains your factory set up and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.

CHRYSLER SEBRING Systems COMPATIBILITY

CHRYSLER Model   Model Year Interface System
300 2008-2010 with MyGig Radio
300C 2008-2010 with MyGig Radio







*Works with all MyGig Radios including: RER / REN / RHB / RBZ / RHR

*Note: NON U.S. Radios not supported: REP / RHP / REZ / REW / RBZ / REJ

CHRYSLER SEBRING INTERFACE FEATURES

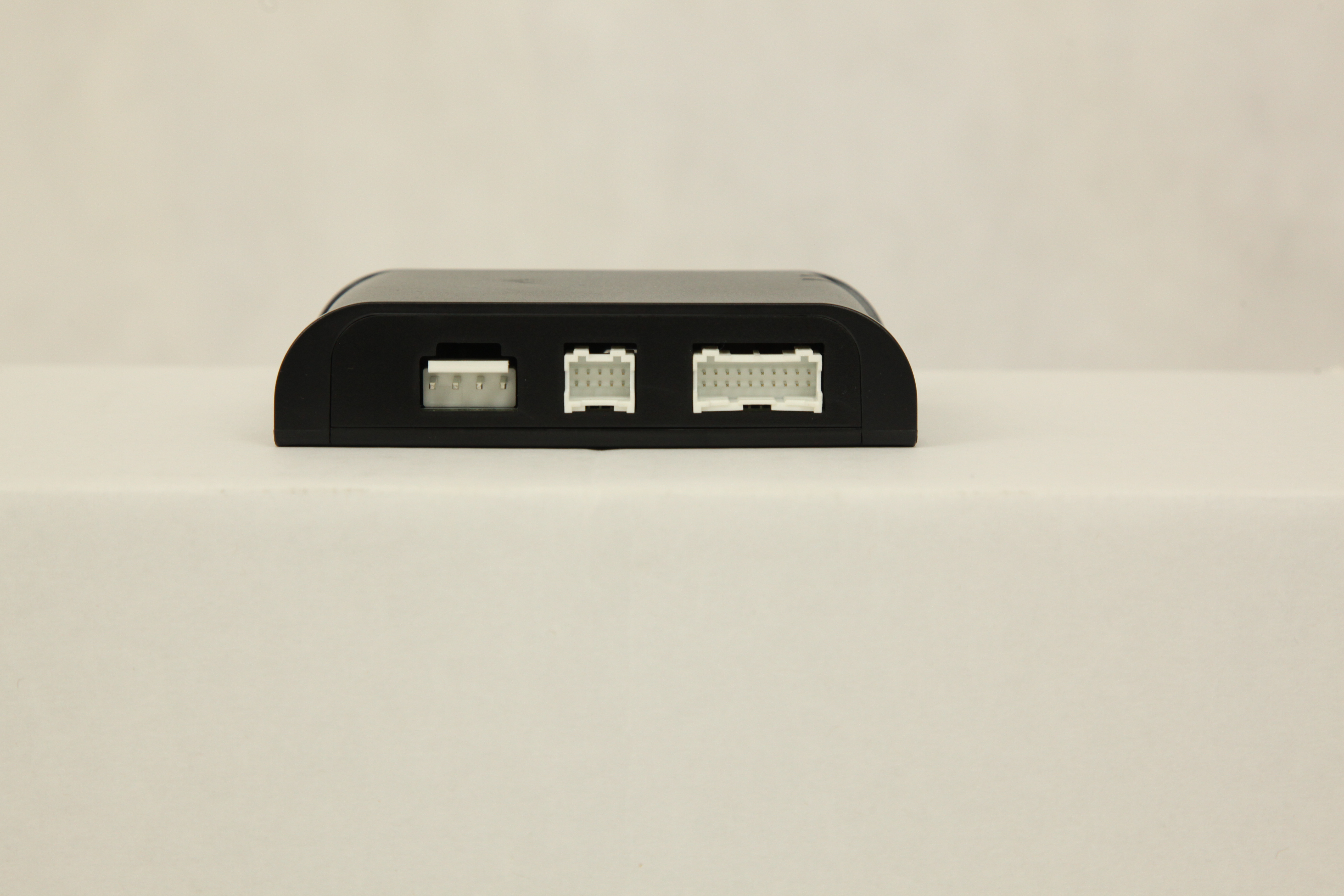

gch backup camera integration interface

Input

    • Plug & Play installation by LCD Connector
    • Connected devices controlled through factory Steering Wheel buttons
    • 1 x Dedicated Rear-View Camera input
    • 2 x Video Inputs
    • USB Updateable



Output

    • Unlocks Screen for Video In Motion in all gears
    • 1 x Rear View Camera Image
    • 2 x Video Source Displays
    • 2 x 12V Output for external sources



gch backup camera integration harnessHighlights

    • Single Plug and Play Connection for Installation
    • No wire cutting or other connections needed
    • Unlocks factory screen to display sources in motion
    • View any video source in all gears
    • Simple removal for Leased Vehicles









CHRYSLER SEBRING OEM Integrated Style Backup Camera FEATURES

oem integrated backup cameraFeatures

    • Flush Mount Camera
    • Vivid Color High Resolution
    • 170° Wide Angle View
    • Parking Guide Lines (can be turned on/off)
    • Waterproof Ip68
    • Shockproof
    • Simple Installation



Specifications

155° Off Axis View Cone

IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)

UV Protected and Waterproof Cabling

0.1 LUX Rating for Optimal Low-light Performance

32° to 160° Temp Performance Rating

Quick Connect/Disconnect

Optional Parking Lines ON/OFF

Optional Mirror Image ON/OFF

Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)



CHRYSLER SEBRING Backup Camera System PACKAGE CONTENT



GC8 universal flush mount backup camera

    • Multimedia Interface
    • Plug & Play Multimedia Harness
    • OEM Style CHRYSLER Rear View Camera
    • Power/Ground harness cable
    • 35FT Video cable
    • Installation Instructions
    • Owners Manual/Warranty Card









gch backup camera integration harnessgch backup camera integration interface



Additional information

Weight 4 lbs
Dimensions 12 × 8 × 6 in
Make

Camera Option

,

Year
