Description

CHEVROLET EQUINOX OEM Integrated Backup Camera

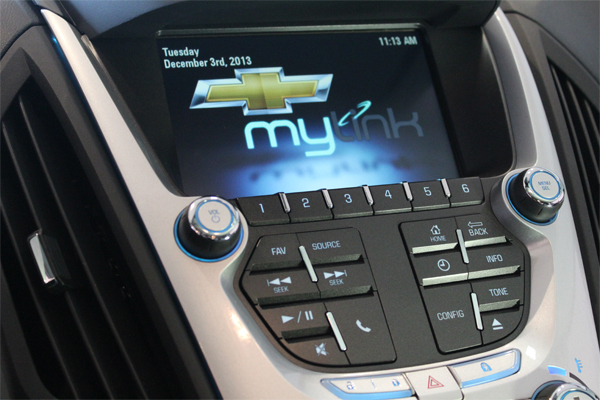

The FC-CML-EQ systems package is a comprehensive high definition Rear View Camera and Factory Connect Harness for your CHEVROLET. The OEM style Rear View Camera is mounted above the license plate area and connects to the Factory specific CHEVROLET Harness behind the existing screen. Once the vehicle is placed into reverse the high resolution image of the backup camera will automatically appear on the factory display for safe navigation. This kit is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with a Rear View Camera System.

CHEVROLET EQUINOX Systems COMPATIBILITY

CHEVROLET EQUINOX Factory Connect Harness FEATURES

Features

• • Factory CHEVROLET Connect Harness
  • Plug & Play configuration
  • Quick Connect to Video Cable and Rear Camera
  • Automatic Reverse trigger activation
  • Rear Camera Input (RCA)
  • Parking Guide Line Option (ON/OFF)

CHEVROLET EQUINOX Backup Camera FEATURES

Features

• • OEM Style Backup Camera fitment
  • Vivid Color High Resolution
  • 170° Wide Angle View
  • Parking Guide Lines (can be turned on/off)
  • Waterproof Ip68
  • Shockproof
  • Simple Installation

Specifications

155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)

CHEVROLET EQUINOX OEM Integrated Backup Camera System PACKAGE CONTENT

• • CHEVROLET Factory Connect Harness
  • CHEVROLET OEM Style Universal Mount Backup Camera
  • 30FT Video Cable
  • Camera Power/Ground Harness
  • Male to Male RCA Adapter
  • Camera sealer pad
  • Installation Instructions
  • Owners Manual/Warranty Card
